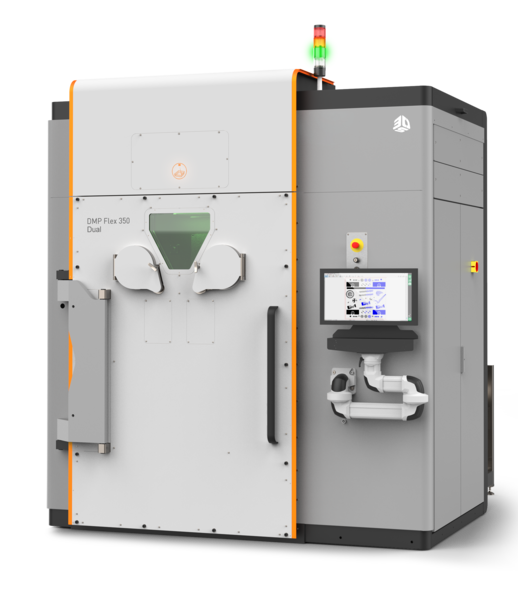

DMP Flex 350 Dual

DMP Flex 350 Dual

Inquire now

Installation space flexibility

Easy replacement of the print modules to maximise print flexibility

Laser productivity

The DMP Flex 350 is a reliable choice for low to medium production environments.

Vacuum chamber

The first-class vacuum chamber design provides an oxygen environment of <25 ppm for an extremely pure pressurised atmosphere, resulting in a superior surface finish.

NoSupports

NoSupports enables metal powder bed printing without support structures, which speeds up production and delivery.

Product description

The DMP Flex 350 Dual is an advanced metal 3D printer from 3D Systems that has been specially developed for the requirements of industrial applications. With its build volume of 275 × 275 × 420 mm and dual-laser configuration, it enables the production of complex, high-density metal parts with excellent repeatability. The integrated vacuum chamber technology ensures a constant low oxygen environment (<25 ppm), resulting in exceptional material purity and surface quality. Thanks to the modular design, pressure modules can be quickly exchanged to process different materials efficiently. The NoSupports technology reduces the need for support structures, speeds up the production process and minimises material consumption. The DMP Flex 350 Dual is therefore the ideal solution for industries such as aerospace, medical technology and the automotive industry, which demand the highest precision and efficiency in additive manufacturing.

Technical details

Laser power type

2 x 500 W fibre laser1

Wavelength of the laser

1070 nm

Individual building volume (X x Y x Z)

275 x 275 x 420 mm
Height including building board

Layer thickness

Adjustable, at least 5 μm, typical values: 30, 60, 90 μm

Precision meets speed

Experience the DMP Flex 350 Dual in action

Two powerful 500 watt lasers work in synchronisation to produce complex metal components faster and more efficiently. The DMP Flex 350 Dual ensures the highest component quality, reduced production times and optimum capacity utilisation - ideal for industrial series production at the highest level.


Downloads

Download detailed documents with comprehensive technical specifications and further product information.
