IMMEDIATELY AVAILABLE

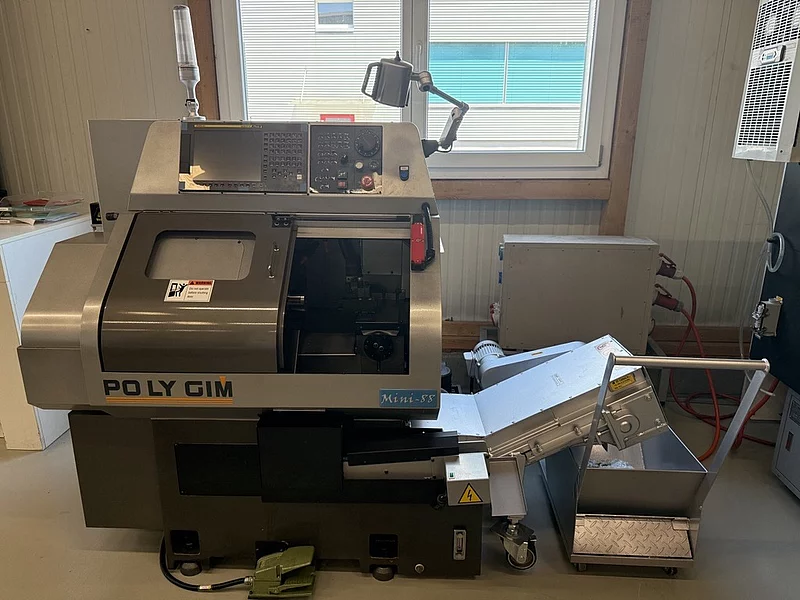

Compact, precise, powerful - the POLY GIM Mini 88!

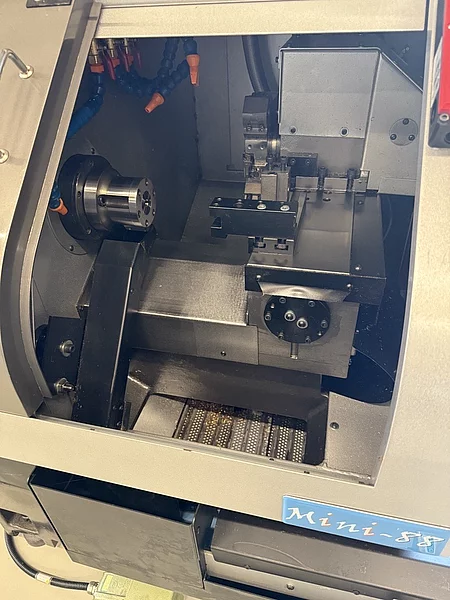

Meet our ground-breaking mini CNC lathe, designed for compact spaces without compromising on performance. With a fixed head and the option to opt for an automated design, this machine is characterised by precision and speed. Its integrated robotic system further increases efficiency, making it the ideal solution for small part production. Space-saving, robust and incredibly precise, our mini CNC lathe is the perfect solution for your production needs.
Technical details
CNC control
Fanuc TF Plus
Max. Diameter
60mm
Rod diffuser
Ø 26 mm (with collet chuck)
Drive power main spindle
2.2 kw
Travelling distances
X/Z: 170 mm / 170 mm
Express lanes
X: 15 m/min
Z: 15 m/min
Z: 15 m/min
Spindle speed
6'000 rpm
Servo turret
8 pieces
Tool holder bushes
Ø 6/ 10/12/16 mm
Tool holder with base
2 x piece (servo 8-position turret)
services
Interested?
Special price CHF 49'800.-
excl. VAT.
With all additional options, including commissioning and excluding transport.
