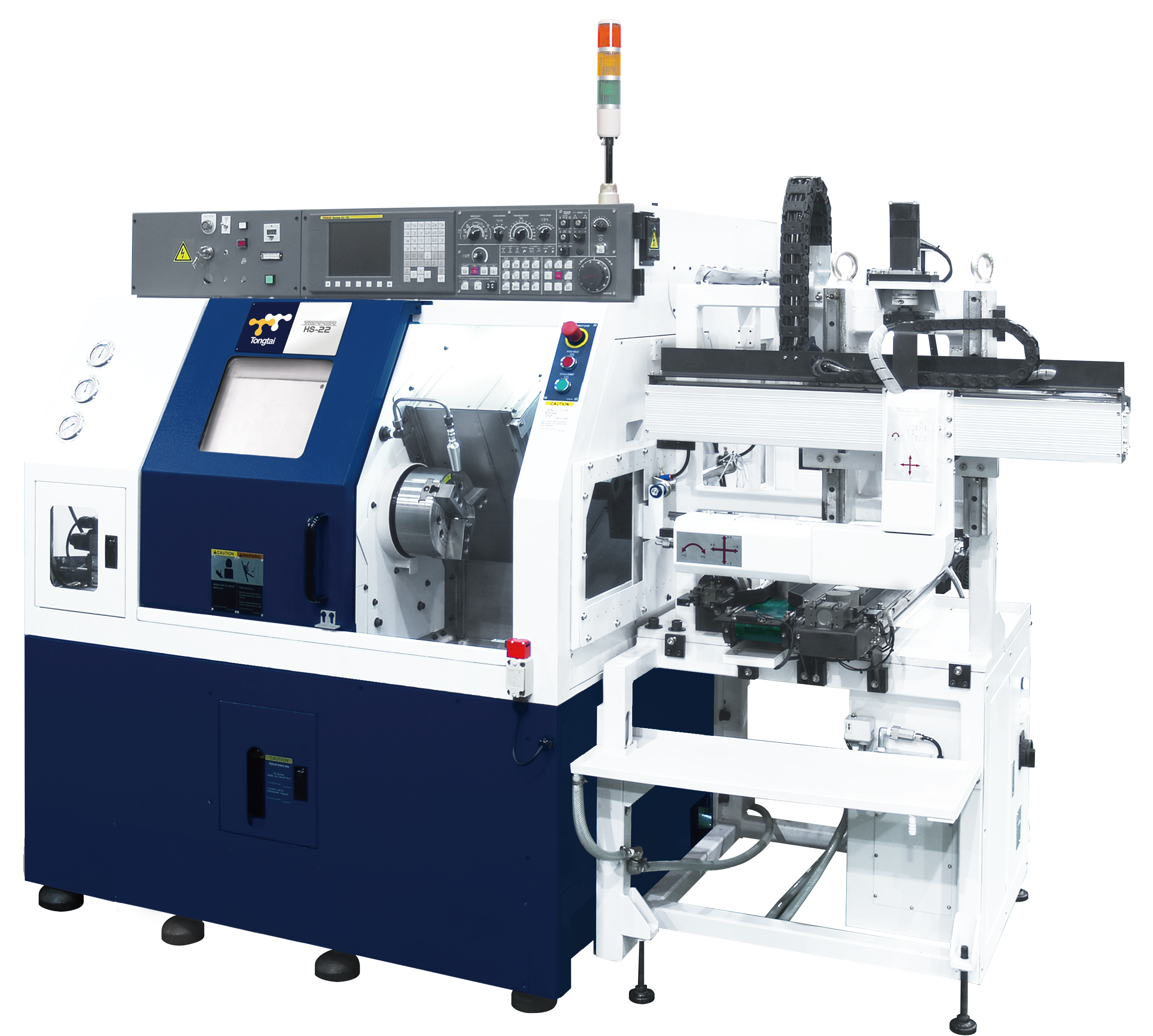

HS-22 [M] Tongtai

Inquire now

Automatic material feed

Extremely fast automatic material feed in just 4.8 seconds

Automatic material feed

Extremely fast automatic material feed in just 4.8 seconds

Maximum efficiency

Efficient hybrid machining (turning and milling) thanks to power turret and C-axis

Product description

This machine has been specially developed for processing small and medium-sized workpieces. The complete boxway guide structure ensures maximum rigidity and stability. The powerful turret in combination with the C-axis enables precise hybrid machining such as turning and milling in a single operation. The patented automatic material feed and storage system ensures extremely short loading and unloading times of just 4.8 seconds, significantly increasing productivity. Ideal for companies that require maximum efficiency and versatility in production.

Technical details

Chuck diameter

6" (8") inch

Rod diffuser

Ø26 (Ø44) (Ø51) mm

Traverse path X/Z axis:

155/220 mm

Rapid traverse X/Z axis:

Boxway 20/20 m/min

Spindle speed

6,000 (4,800) (4,500) rpm

Tool places

12 (8) [VDI-40: 12] pieces

Innovation in motion

Experience the HS-22 in action!

See how the machines unleash their full power - precisely, efficiently and with impressive speed. Experience the technology in motion and discover what lies behind its outstanding performance.

services

T-Tac Switzerland

We are proud to be the official T-TAC (Tongtai Technical Application Centre) in Switzerland. As part of this network, we offer customised solutions for your manufacturing processes, including trial production, training and technical advice. Our goal is to increase your productivity and help you optimise your machines and processes. Contact us to find out more about our services and how we can further improve your production.

Downloads

Download detailed documents with comprehensive technical specifications and further product information.

Spec Sheet HS-22 Series
