Multitask series BIMATEC SORALUCE

Multitask series BIMATEC SORALUCE

Inquire now

Machining of complex workpieces in a single clamping operation

Low foundation costs due to block foundation

User-friendly and innovative technology

Product description

Multitask machines for combined, precise milling, turning and grinding of complex workpieces. Unrivalled ergonomics and user-friendliness for optimum operating and work processes thanks to the low machine table with integrated carousel rotary table and open access to the work area. Optimised machine concept for the production of individual workpieces and series production.

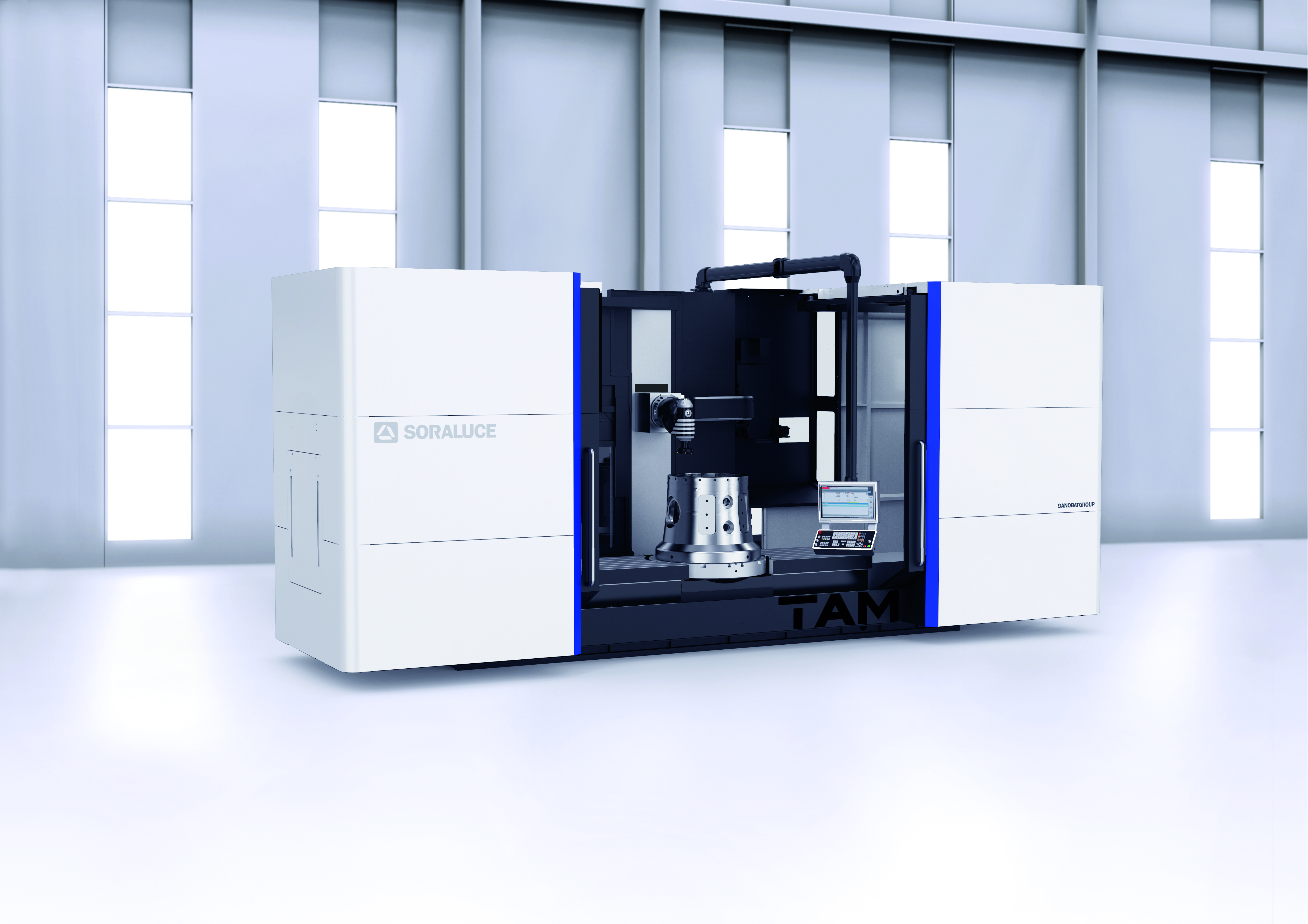

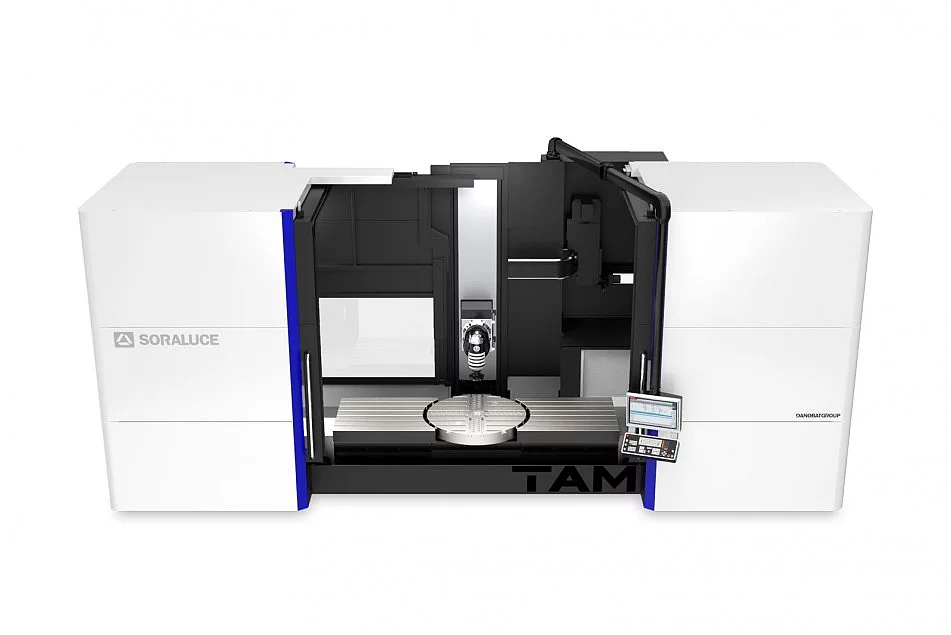

Multitask bed milling machine TAM

The all-rounder: milling, turning and grinding in one machine.

Features

  • Compact design for installation without a separate foundation
  • Table load 8,000 kg / milling, 2,000 kg / turning and grinding
  • Integrated NC rotary table with Ø 1,250 mm
  • Universal milling head for processing in any angular position
  • Universal milling head with clamping for turning function

Benefits

  • Maximum stability thanks to cast construction
  • DAS+® vibration damping for increased productivity
  • User-friendly machine design
  • Maximum precision for decades
X-axis travel (longitudinal)2,500 / 3,500 mm
Z-axis travel (vertical)1,500 mm
Y-axis travel (transverse)1,200 mm

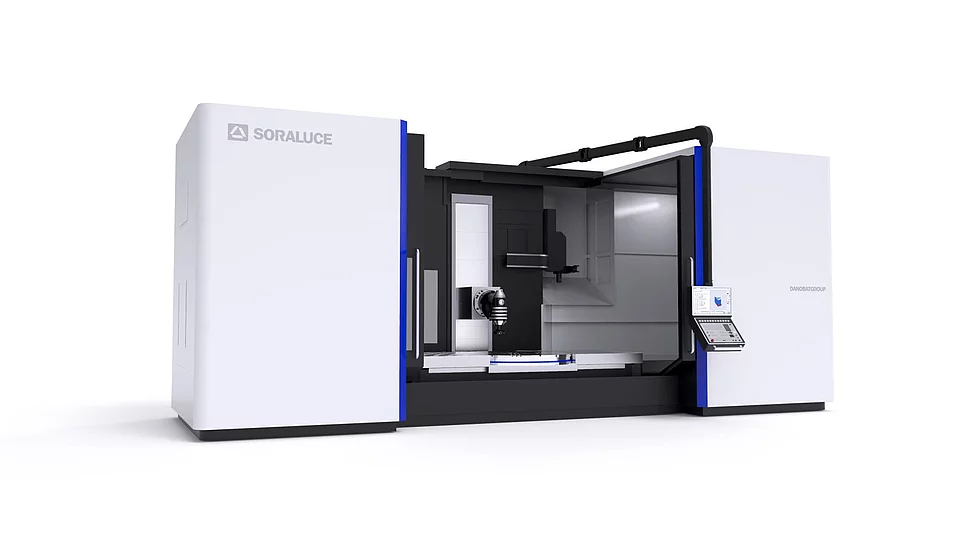

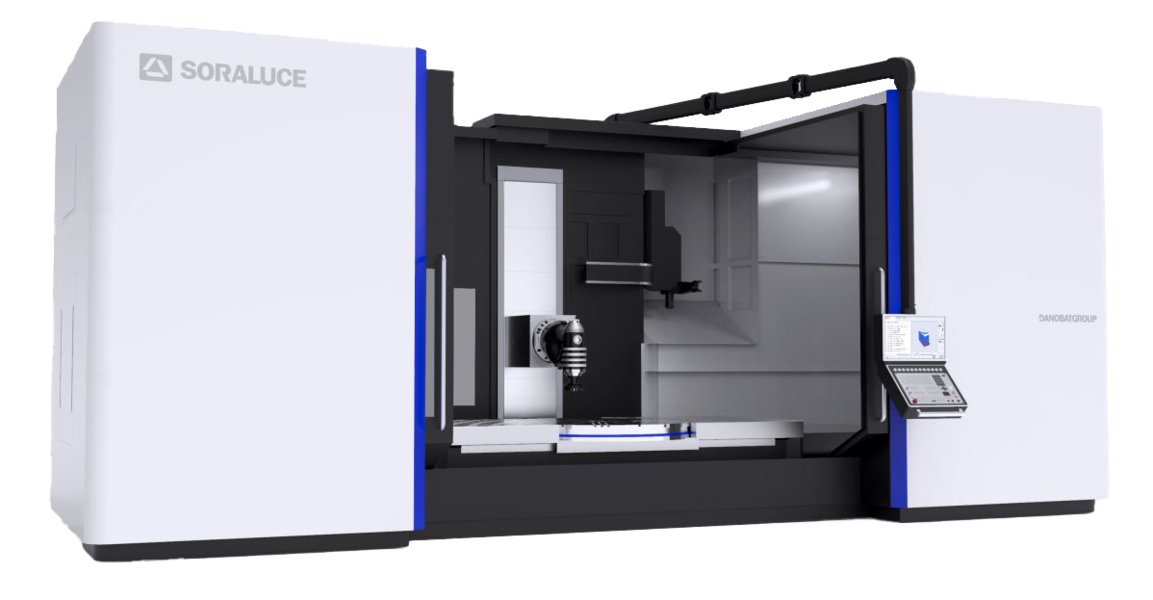

Multitask bed milling machine TRM

The all-rounder: milling, turning and grinding in one machine.

Features

  • Compact design for installation without a separate foundation
  • Table load for milling 10,500 kg / for turning and grinding 3,250 kg
  • Integrated NC rotary table with Ø 1,600 mm
  • Universal milling head for processing in any angular position
  • Universal milling head with clamping for turning function

Benefits

  • Maximum stability thanks to cast construction
  • DAS+® vibration damping for increased productivity
  • User-friendly machine design
  • Maximum precision for decades
X-axis travel (longitudinal)3,000 / 3,500 mm
Z-axis travel (vertical)1,600 mm
Y-axis travel (transverse)1,300 / 1,500 mm

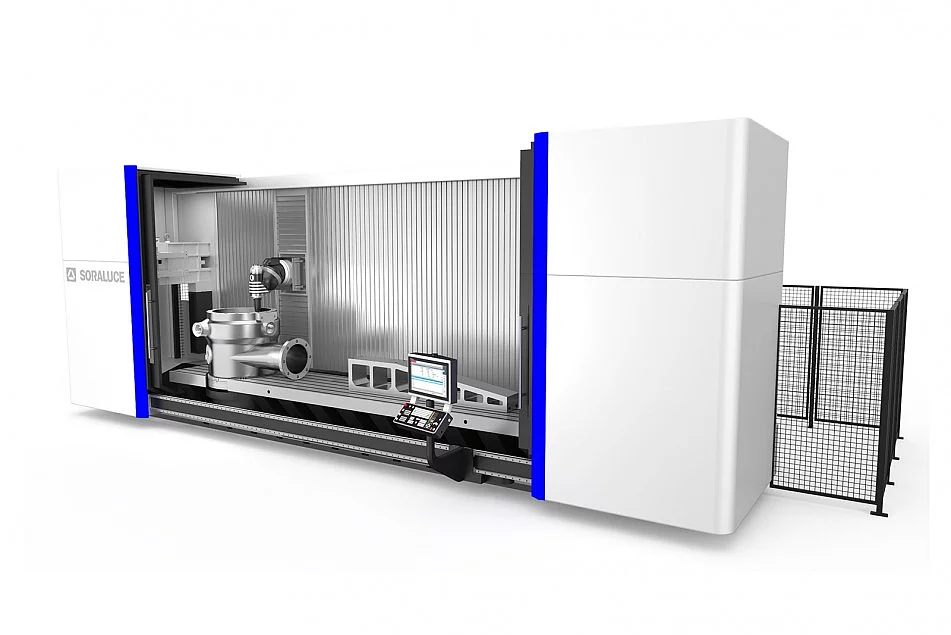

Multitask rigid bed milling machine SAM

The SORALUCE SAM has a unique machine architecture with high stability. A compact machining centre with an automatically indexing milling head, high dynamics in all axes and outstanding ergonomics, accessibility and safety for the machine operator.

Configuration options

  • Fixed machine table with integrated NC carousel rotary table
  • Fixed machine table with two integrated NC carousel rotary tables

Features

  • Full enclosure
  • Optimum access to the work area
  • Machine table at the height of the machine operator
  • Control panel can be moved parallel to the X-axis
  • Integrated chip conveyor
  • Pendulum machining
  • Surface mounting

Benefits

  • DAS+® vibration damping for increased productivity
  • Maximum stability due to heavy cast construction
  • User-friendly machine design
  • Highest precision for decades
X-axis travel (longitudinal)4,000 / 5,000 / 6,000 mm
Z-axis travel (vertical)1,500 mm
Y-axis travel (transverse)1,200 mm
Machine table SAM40
Machine table SAM50
Machine table SAM60		4,000 x 1,000 mm
5,000 x 1,000 mm
6,000 x 1,000 mm
