Clamping system

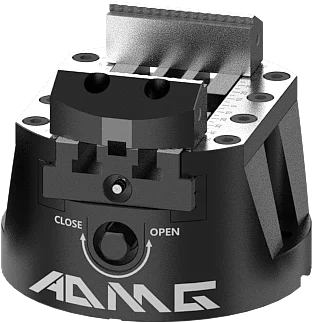

GEA 160 M
ADMG Technology vices are manufactured entirely from solid material with a body made of Ergal 7075 aluminium. The insert is made of steel, hardened and ground. The vice is lighter and easier to assemble. GEA guarantees tighter tightening thanks to the trapezoidal threaded spindle. Its geometric shape, its weight and the force applied make it unique in its kind.
Technical details
Travelling distance per gripping unit
approx. 28 mm
Clamping force
20 CN
Operating system
Kinematics driven by double screw with trapezoidal thread
Functionality
The gripper opens and closes via a trapezoidal threaded spindle with right-hand and left-hand threads, whereby the applied force is transferred directly to the gripper jaws. ADMG guarantees a repeat accuracy and precision of up to 0.02 mm.
Connections
It is attached to the machine table using a zero-point clamping system and T-slots in combination with screws.
Temperature range
From 5 to 60°
Weight
9 kg
Maintenance
Lubrication every 50,000 cycles
