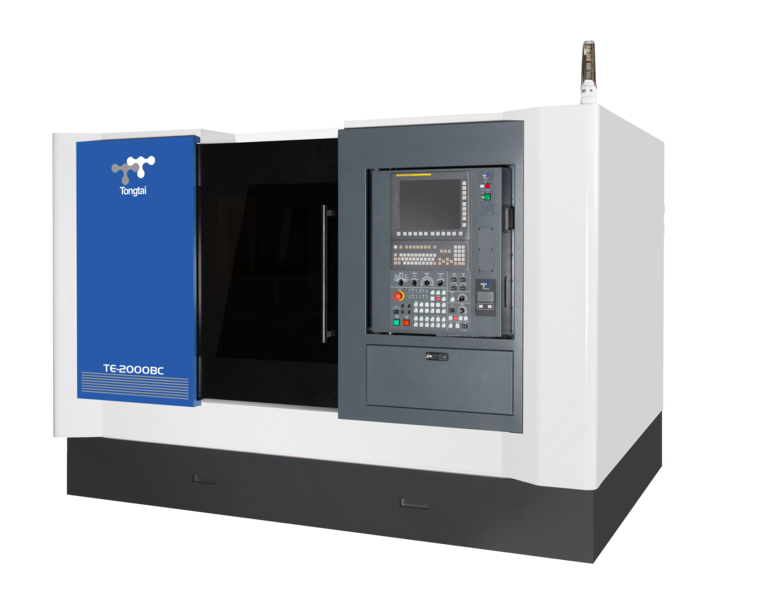

TE-2000BC Tongtai

TE-2000BC Tongtai

Inquire now

Improved performance

Optimised structural rigidity and increased machining efficiency compared to the TNL series.

Flexible configuration

Standard servo turret with 8 tools, optional power turret for up to 16 tools.

Complete processing

Optional counter spindle module enables both sides of the workpiece to be machined in one clamping operation.

Product description

The TE series is the new generation of CNC lathes from Tongtai and replaces the previous TNL series. It impresses with improved structural rigidity and significantly increased machining efficiency. The machines are equipped with a turret and two motion axes. A servo turret with 8 tool positions is supplied as standard; depending on the machining requirements, a more powerful turret with up to 16 tool positions can also be selected. A counter spindle can be integrated as an option, enabling complete machining of both sides of the workpiece in a single clamping operation - for maximum productivity and precision.

Technical details

Chuck diameter

8" (10") inch

Rod diffuser

Ø51 mm

Traverse path X/Z axis:

230 / 600 mm

Rapid traverse X/Z axis:

30 / 30 m/min

Spindle speed

4,500 (3,000) rpm

Tool places

8 / 12 pieces
services

T-Tac Switzerland

We are proud to be the official T-TAC (Tongtai Technical Application Centre) in Switzerland. As part of this network, we offer customised solutions for your manufacturing processes, including trial production, training and technical advice. Our goal is to increase your productivity and help you optimise your machines and processes. Contact us to find out more about our services and how we can further improve your production.

Downloads

Download detailed documents with comprehensive technical specifications and further product information.
